Pilot trial Services

Extrusion Coating and Lamination

A unique pilot line for the creation of new packaging material innovations.

KCL extrusion coating and lamination services are designed to meet the demands of most challenging and modern extrusion trials

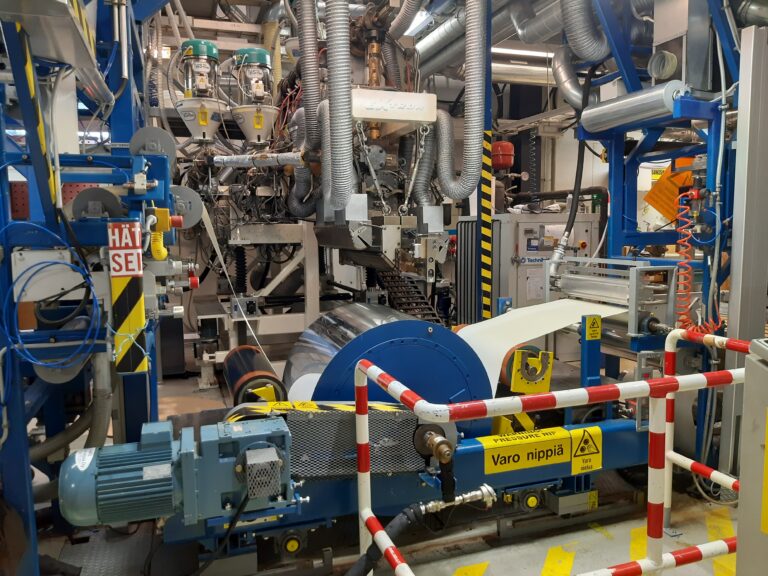

Extrusion coating and lamination pilot line is our latest pilot services extension. A 5-layer coextrusion technology with encapsulation function and versatile pre- and post surface treatment options provides excellent opportunities for the creation of new packaging material innovations. It can also be used as a small scale demo material production line.

  • Extrusion coating, lamination
  • 4 extruders, 5-layers
  • Surface treatment options: flame, corona, plasma
  • T-die encapsulation function
  • Max. line speed ~400 m/min
  • Max. substrate width 500 mm

Extrusion coating

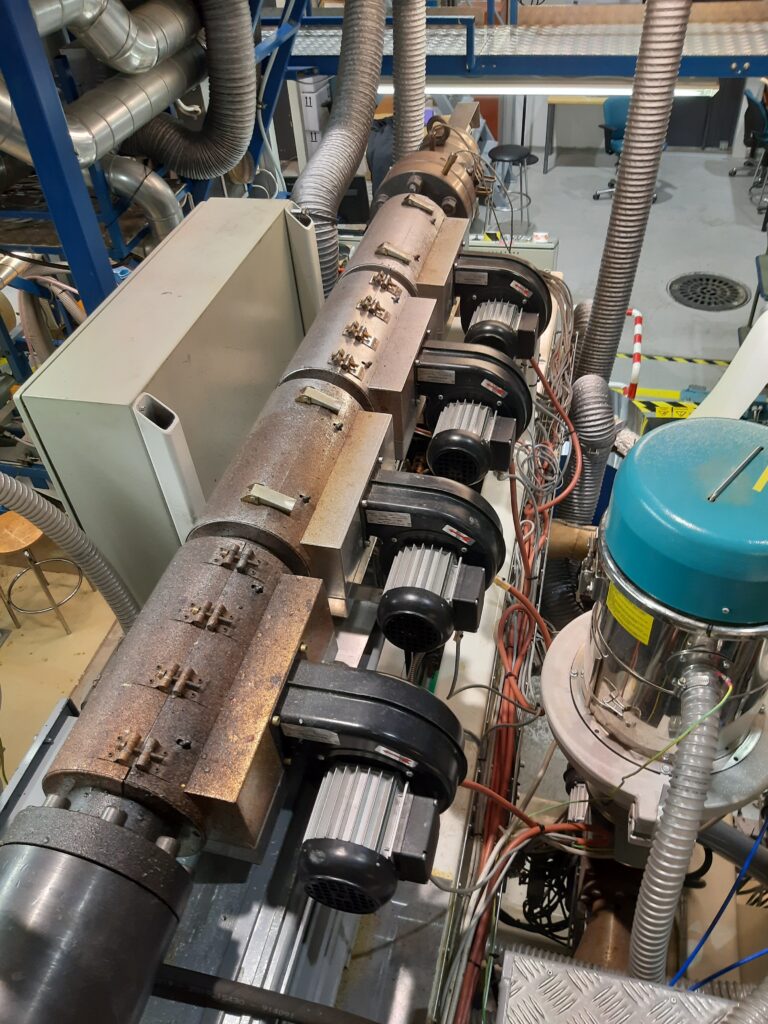

  • Extruder A
  • Diameter 60, L/D ratio 30
  • Max output 90 kg/h LDPE (depending on the polymer)
  • Polymer melt temperature and pressure measurement

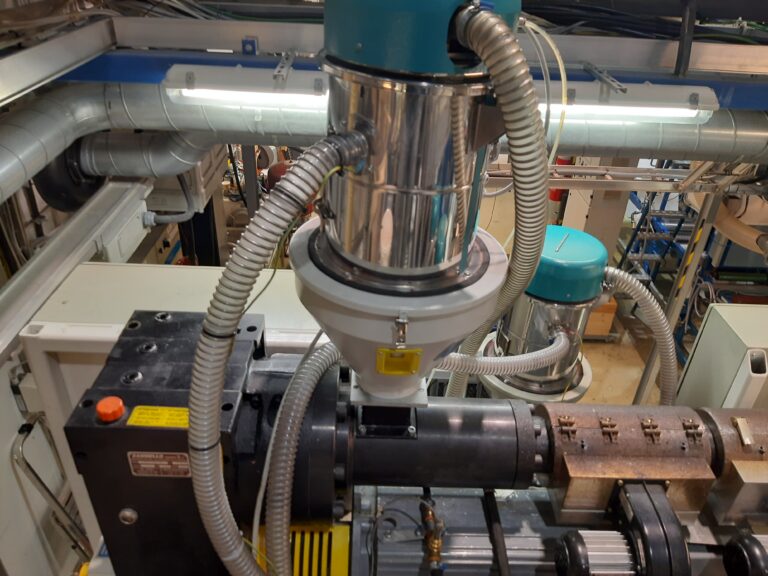

  • Hopper loader
  • Extruder B
  • Diameter 40, L/D ratio 24
  • Max output 30 kg/h LDPE (depending on the polymer)
  • Polymer melt temperature and pressure measurement
  • Hopper loader
  • Extruder C
  • Diameter 30, L/D ratio 25
  • Max output 20 kg/h LDPE (depending on the polymer)
  • Polymer melt temperature and pressure measurement
  • Hopper loader
  • Extruder D (normally in encapsulation use)
  • Diameter 30, L/D ratio 25
  • Max output 20 kg/h LDPE (depending on the polymer)
  • Polymer melt temperature and pressure measurement
  • Hopper loader
  • Die
  • Cloeren EBR III A
  • Internally Deckled Extrusion T-type Die
  • Lip Heaters
  • Edge Encapsulation System
  • Feed block
  • Cloeren VG 5-layer Dual Plane Feed block
  • Streamline Manifold
  • Selector plugs
  • Web - A-A-A-A-A D/D
  • Web - B-B-B-B-B D/D
  • Web - A-A-A-B-B D/D
  • Web - B-B-A-A-A D/D
  • Web - B-C-A-A-A D/D
  • Web - A-A-C-B-B D/D
  • Web - C-A-A-A-B D/D
  • Web - B-C-D-A-A A/A
  • Web - B-D-C-D-A A/A
  • Web - C-D-A-A-B B/B

Surface treatment

  • Corona

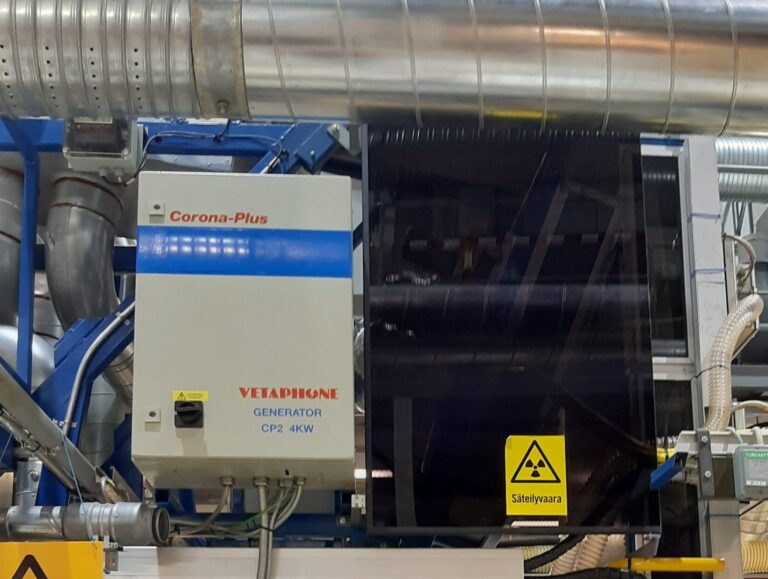

  • Vetaphone Corona-Plus
  • Treatment power max. 4 kW
  • Ceramic electrodes
  • Post corona
  • Softal 50100
  • Treatment power max. 1,5 kW
  • Metal electrodes
  • Atmospheric plasma
  • Vetaphone Corona-Plus
  • Treatment power max. 2,0 kW
  • Ceramic electrodes
  • Argon and Helium, plus their mixtures with Nitrogen
  • Treatment width 380 mm
  • Flame
  • Hill GmbH, type EF 75-1 (Burner CE62-500)
  • Heat output max. 50 kW
  • Gas supply propane
  • Movable flame unit and adjustable air gap
