Pilot trial Services
Finishing & Converting
A wide variety of options for paper and board finishing & converting

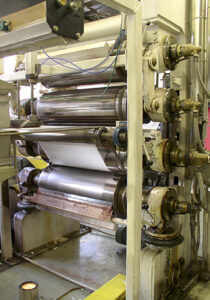

KCL calendering services are designed to meet the demands of most challenging and modern calendering trials

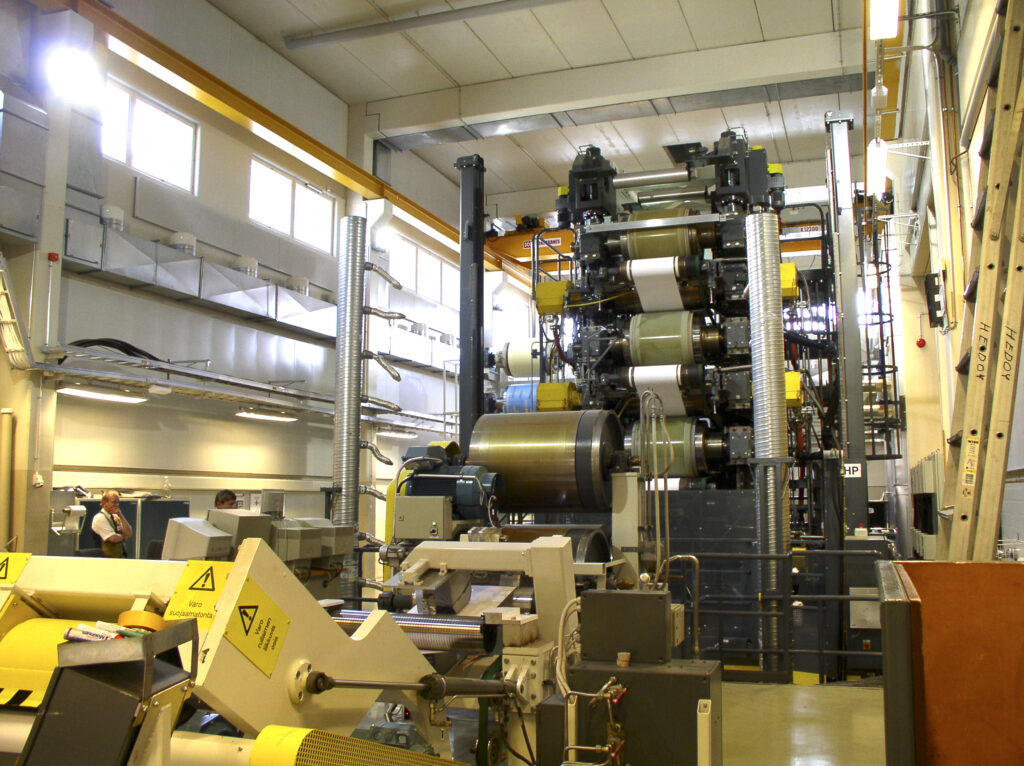

KCL Multical calender is used for evaluation of paper and raw material potential and also to evaluate the effects of different calendering variables. Multical can be used both for finishing purposes after a coating or papermaking trial and also for R&D purposes in specially designed calendering trials.
- Complies with almost all present calendering methods
- Located in a humidity and temperature controlled environment
- Nips 1-12
- Speed 200-2.500 m/min
- Max. temperature 200 C
- Max. lineload 550 kN/m
Other calendering facilities
- Online soft-hard calender on pilot coater
- 1-2 nips
- Max. speed 1.400 m/min
- Max. temperature 250 C
- Max. line load 300 kN/m
- Online hard-hard calender on paper machine
- 1-3 nips
- Max. speed online/offline 120/600 m/min
- Max. temperature 90 C
- Max. line load 55 kN/m

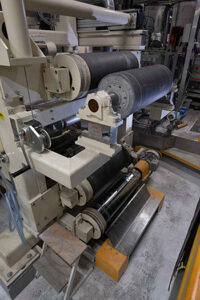

Winding
- Rewinding pilot or mill reels for further converting
- Moistening of reels for calendering
- Max. speed 1.000 m/min
- Reel width 350-1.000 mm
- Max. reel diameter 1.600 mm
- Cores 3" and 6"
Sheeting
- Sheet cutting from pilot and mill reel to sheets
- Sheet-fed offset sheets, A4 and A3 sheets, special sheet sizes
- Guillotine & Wohlenberg sheet cutters
- Max. reel diameter 1.600 mm
- Max. reel width 1.000 mm
- Max. reel weight: 1.500 kg
