Pilot trial Services
Extraction
Services pushing your innovations for tomorrow’s successful products
KCL has extensive experience in biomass purification through different solvent systems. Typical methods would be chemical countercurrent extraction, CO2 extraction, hot-water extraction, and solvent extraction.
These methods allow you to fractionate biomass to its components and recover them in pure fractions
Cases:
- High- and low-consistency extraction of biomass
- Purification of biomass
- Separation of certain compounds from the raw material in controlled conditions
- Purification of hemicellulose from pulp
- Enzyme treatment of materials
- Testing and analyzing different solvent systems
Different extraction capabilities:

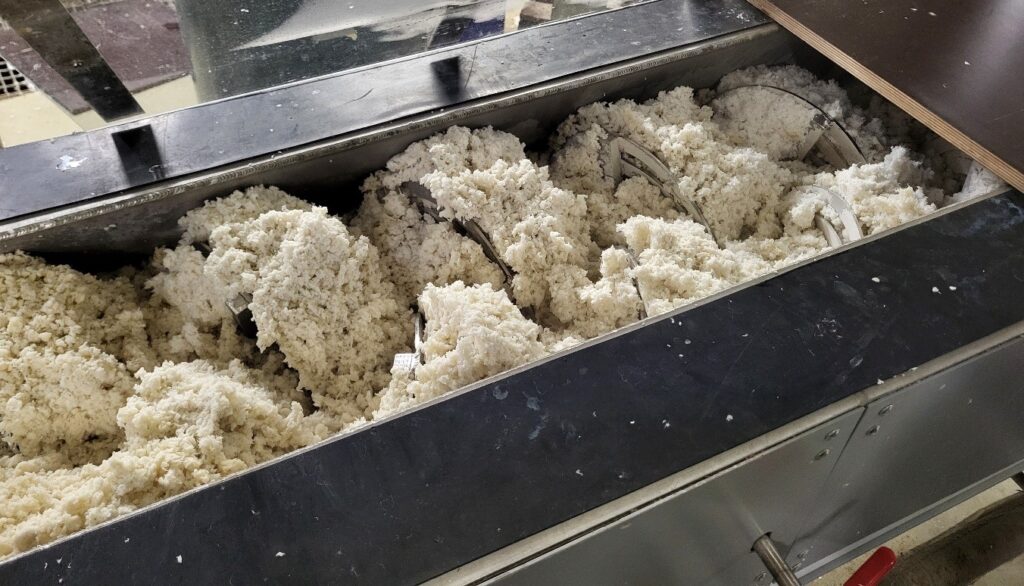

- Twin-screw reactor type:
- 450 L capacity with higher capacity options up to 2200 L

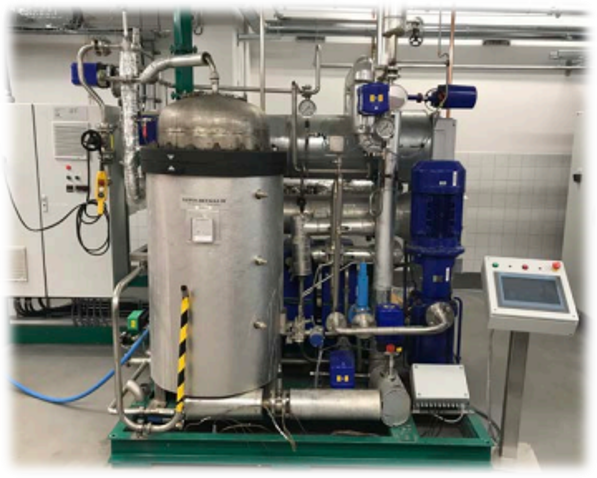

- CO2 extraction equipment:
- 10 L batch reactor
- Batch extraction equipment:
- 300 L (0.3 m3) batch reactor
- 4000 L (4 m3) batch reactor with liquid circulation
Equipment specifications
- Atmospheric
- High- or low-consistency
- Continuous or batch possibility
- Direct or indirect heating with steam
- Closed-loop air circulation or atmospheric operation
- Possibility to input chemicals in different sectors
